Introduction

The other day I came across a nice article written by Mario Broodbakker called "SQL Server Wait Events: Taking the Guesswork out of Performance Profiling" (see references) on how to troubleshoot slow response times in SQL Server 2000 and 2005 using the YAPP Method. According to the author, one of the biggest challenges to apply this method in SQL Server is that fact that the wait statistics are collected and exposed at the server level (server wide):

... "This is simply not enough, unless you have the luxury of testing your application and SQL statements on an isolated server" ..." But, of course, it's often hard or impossible to isolate and replicate production problems on an isolated test server." ...

I decided to write this because in SQL Server 2008 the wait statistics are available at virtually any level, and (at the time of writing) I couldn't find any articles on the new sqlos.wait_info and sqlos.wait_info_external extended events.

YAPP Method

The YAPP Method: "Yet Another Performance Profiling Method" is based on a paper written by Anjo Kolk (see references). The basic idea of the method can be expressed with the following formula:

(1)   Response time = service time + wait time

This method for performance troubleshooting has been around for some time and it is a fairly standard practice when debugging slow response times.

You can get the response time and the service time of a query by looking at sys.dm_exec_sessions, columns total_elapsed_time and cpu_time. Alternatively, you can use SQL trace or the more lightweight extended events in SQL Server 2008. Knowing response time and service time and applying formula (1), gives you wait time. So, we know how much we waited. However, in order to get the individual wait types we need the new extended events.

Per session wait statistics in SQL Server 2008

In SQL Server 2008 you can get wait statistics for a given session or statement by leveraging the new extended events. Optionally, you can limit the collection to a small set of wait types or collect only waits exceeding certain duration. If your event session is written carefully, you can use this technique on production systems with very little or no performance impact. In fact, SQL Server 2008 ships with a built-in event session, which is collecting wait statistics, and is running by default out of the box.

Here is how to create an event session to collect wait types for session 51. The events will go to the specified trace file:

create event session session_waits on server

add event sqlos.wait_info

(WHERE sqlserver.session_id=51 and duration>0)

, add event sqlos.wait_info_external

(WHERE sqlserver.session_id=51 and duration>0)

add target package0.asynchronous_file_target

      (SET filename=N'c:\wait_stats.xel', metadatafile=N'c:\wait_stats.xem');



Here is how to start the event session, run your workload, and then stop the event session:

alter event session session_waits on server state = start;

exec sp_workload;

alter event session session_waits on server state = stop;



Here is how to read the trace file:

select * from from sys.fn_xe_file_target_read_file

      ('c:\wait_stats*.xel', 'c:\wait_stats*.xem', null, null)



The result is a list of wait events, representing individual waits, having wait type and duration column. In order to make better sense out of this we need to group the events by wait type and calculate the total duration per wait type. The following code can do this:

create view dbo.read_xe_file as

select object_name as event, CONVERT(xml, event_data) as data

from sys.fn_xe_file_target_read_file

('c:\wait_stats*.xel', 'c:\wait_stats*.xem', null, null)

go



create view dbo.xe_file_table as

select

      event

      , data.value('(/event/data/text)[1]','nvarchar(50)') as 'wait_type'

      , data.value('(/event/data/value)[3]','int') as 'duration'

      , data.value('(/event/data/value)[6]','int') as 'signal_duration'

from dbo.read_xe_file

go



select

      wait_type

      , sum(duration) as 'total_duration'

      , sum(signal_duration) as 'total_signal_duration'

from dbo.xe_file_table

group by wait_type

order by sum(duration) desc

go



Example

Hopefully this example will demonstrate the power of sqlos.wait_info and sqlos.wait_info_external events. I did some measurements by executing the following workload from two connections:

create proc #sp_workload

      as

begin

      SET nocount ON

      CREATE TABLE #t1000k (c2 char(1020));

      BEGIN TRANSACTION

      DECLARE @rows INT = 50000;

      DECLARE @row INT = 0;

      DECLARE @count INT = 0;



      WHILE @row < @rows

      BEGIN

            INSERT INTO #t1000k (c2) VALUES (REPLICATE('a',1000));



            SELECT @row = @row + 1



            IF @count > 10

            BEGIN

                  COMMIT

                  BEGIN TRANSACTION

                  SELECT @count=0

            END



            SELECT @count=@count+1

      END



      COMMIT



END

go

While running the workload I had IOMeter (see references) so that I can add some disk pressure.

Results for session 51: Apparently, most of the time was spent waiting for space in the log buffer to store log records - wait type LOGBUFFER. For complete list of all wait types with their descriptions search for sys.dm_os_wait_stats in MSDN or Books Online (see references).

Response time	Service time	Wait time
32619	1828	30791
wait_type	total_duration	total_signal_duration
LOGBUFFER	9662	66
PREEMPTIVE_OS_FILEOPS	6442	276
PREEMPTIVE_OS_FLUSHFILEBUFFERS	3833	150
PREEMPTIVE_OS_WRITEFILEGATHER	3015	66
SOS_SCHEDULER_YIELD	2481	2480
WRITE_COMPLETION	1971	0
IO_COMPLETION	1183	0
PAGEIOLATCH_UP	551	0
WRITELOG	417	0
PAGELATCH_UP	30	27
PAGELATCH_SH	10	10
PREEMPTIVE_XE_CALLBACKEXECUTE	4	200



Results for session 52: The result for this session is very similar. We can tell that most of the time was spent waiting. After accumulating the durations from all waits we get 30726, which is pretty close to the total wait time calculated using sys.dm_exec_sessions (31484).

Response time	Service time	Wait time
33890	2406	31484
wait_type	total_duration	total_signal_duration
LATCH_EX	16555	32
LOGBUFFER	10796	28
SOS_SCHEDULER_YIELD	2739	2729
WRITELOG	605	0
PAGELATCH_UP	26	25
PAGELATCH_SH	5	5



For the sake of completeness I also collected server-wide wait statistics, which are also available in previous version of SQL Server. The server-wide statistics clearly shows that we have IO bottleneck however you don't know exactly which session or query was affected and by how much:



wait_type	wait_time_ms	signal_wait_time_ms
LOGBUFFER	21666	127
WRITELOG	17118	4
LATCH_EX	16561	34
PAGEIOLATCH_UP	7891	0
SOS_SCHEDULER_YIELD	7058	7038
PREEMPTIVE_OS_FILEOPS	6443	0
WRITE_COMPLETION	5896	4
SLEEP_BPOOL_FLUSH	3916	278
PREEMPTIVE_OS_FLUSHFILEBUFFERS	3833	0
PREEMPTIVE_OS_WRITEFILEGATHER	3016	0
IO_COMPLETION	1680	0
PREEMPTIVE_OS_REPORTEVENT	141	0
PAGELATCH_UP	139	128
PREEMPTIVE_OS_PIPEOPS	128	0
PREEMPTIVE_XE_TARGETINIT	85	0
XE_BUFFERMGR_ALLPROCESSED_EVENT	70	0
PAGELATCH_SH	23	23
PREEMPTIVE_OS_QUERYREGISTRY	16	0
PREEMPTIVE_XE_CALLBACKEXECUTE	8	0
PAGELATCH_EX	7	7
PREEMPTIVE_XE_SESSIONCOMMIT	5	0
LATCH_SH	1	0
PREEMPTIVE_OS_GETDISKFREESPACE	1	0



Complete test code

Here is the complete source code of the test:

use tempdb

go



--

-- Enable xp_cmdshell to delete trace files

--

exec sp_configure 'show advanced options', 1

reconfigure

exec sp_configure 'xp_cmdshell', 1

reconfigure

go



BEGIN TRY

      drop proc #sp_workload

END TRY BEGIN CATCH END CATCH

go



create proc #sp_workload

      as

begin

      SET nocount ON

      CREATE TABLE #t1000k (c2 char(1020));

      BEGIN TRANSACTION

      DECLARE @rows INT = 50000;

      DECLARE @row INT = 0;

      DECLARE @count INT = 0;



      WHILE @row < @rows

      BEGIN

            INSERT INTO #t1000k (c2) VALUES (REPLICATE('a',1000));



            SELECT @row = @row + 1



            IF @count > 10

            BEGIN

                  COMMIT

                  BEGIN TRANSACTION

                  SELECT @count=0

            END



            SELECT @count=@count+1

      END



      COMMIT



END

go



BEGIN TRY

      drop event session session_waits on server

END TRY BEGIN CATCH END CATCH

go



exec xp_cmdshell 'del c:\wait_stats*.xel', no_output;

exec xp_cmdshell 'del c:\wait_stats*.xem', no_output;

go



declare @cmd nvarchar(max);

set @cmd = N'create event session session_waits on server ' +

      N'add event sqlos.wait_info (WHERE sqlserver.session_id=' + convert(nvarchar(10), @@spid) + N' and duration>0) ' +

      N', add event sqlos.wait_info_external (WHERE sqlserver.session_id=' + convert(nvarchar(10), @@spid) + N' and duration>0) ' +

      N'add target package0.asynchronous_file_target (SET filename=N''c:\wait_stats.xel'', metadatafile=N''c:\wait_stats.xem'')';

exec(@cmd);

go



BEGIN TRY

      drop table #snapshot

END TRY BEGIN CATCH END CATCH

go



select total_elapsed_time, cpu_time into #snapshot from sys.dm_exec_sessions where session_id=@@SPID;

go



alter event session session_waits on server state = start;

exec #sp_workload;

alter event session session_waits on server state = stop;

go



select

      (es.total_elapsed_time - ss.total_elapsed_time) as 'Response time',

      (es.cpu_time - ss.cpu_time) as 'Service time',

      ((es.total_elapsed_time - ss.total_elapsed_time) - (es.cpu_time - ss.cpu_time)) as 'Wait time'

      from sys.dm_exec_sessions es, #snapshot ss where session_id=@@SPID;

go



drop event session session_waits on server

go



BEGIN TRY

      drop view dbo.read_xe_file

END TRY BEGIN CATCH END CATCH

go

create view dbo.read_xe_file as

select object_name as event, CONVERT(xml, event_data) as data

from sys.fn_xe_file_target_read_file('c:\wait_stats*.xel', 'c:\wait_stats*.xem', null, null)

go



BEGIN TRY

      drop view dbo.xe_file_table

END TRY BEGIN CATCH END CATCH

go

create view dbo.xe_file_table as

select

      event

      , data.value('(/event/data/text)[1]','nvarchar(50)') as 'wait_type'

      , data.value('(/event/data/value)[3]','int') as 'duration'

      , data.value('(/event/data/value)[6]','int') as 'signal_duration'

from dbo.read_xe_file

go



select

      wait_type

      , sum(duration) as 'total_duration'

      , sum(signal_duration) as 'total_signal_duration'

from dbo.xe_file_table

group by wait_type

order by sum(duration) desc

go



--

-- CLEANUP

--

exec xp_cmdshell 'del c:\wait_stats*.xel', no_output;

exec xp_cmdshell 'del c:\wait_stats*.xem', no_output;

drop view dbo.xe_file_table;

drop view dbo.read_xe_file;

drop proc #sp_workload;



References

Sys.dm_os_wait_stats

The following MSDN article shows all wait types with their description: http://msdn.microsoft.com/en-us/library/ms179984.aspx

IOMeter

IOMeter is an IO stress and measurement tool developed by Intel. It is now an Open Source tool, and freely downloadable from:

http://www.iometer.org

SQL Server Wait Events: Taking the Guesswork out of Performance Profiling

A very nice article by Mario Broodbakker on how to troubleshoot slow response times in SQL Server 2000 and SQL Server 2005:

http://www.simple-talk.com/sql/performance/sql-server-wait-events-taking-the-guesswork-out-of-performance-profiling/

Troubleshooting Performance Problems in SQL Server 2005

Here also has a very good presentation on the subject and describes a lot of SQL Server 2005 wait events here:

http://www.microsoft.com/technet/prodtechnol/sql/2005/tsprfprb.mspx

First, a quick introduction. My name is Boris Baryshnikov and I'm a program manager in SQL Server Database Engine group. As of today, Resource Governor is the most recent large project I worked on. Not surprisingly, I will talk about the Resource Governor here.

While Resource Governor spans multiple components of SQL Server Engine, it seems logical to discuss the feature in this blog as the resource management in general is so close to the scope of SQLOS.

Without further delay, let's get to point. As we have recently released a public CTP (Community Technology Preview) of SQL Server 2008 (aka SQL Server 2008 November CTP), which has Resource Governor functionality, and a number of presentations with Resource Governor demo on various conferences, I started getting a lot of questions about the demo itself which made me write this post.

We created this demo when Resource Governor was only a prototype to illustrate the concept, but probably its simplicity made it so attractive that it was included in a number of talks and demos by different people all over the world.

Background

If you are looking for general concepts about Resource Governor, check out the Books Online which comes as a separate download or read it directly on MSDN Library.

The Demo in a Nutshell

In the demo we will create two workload groups which share a common resource pool and one workload group which has its own dedicated resource pool. Each group gets a CPU intensive workload. Using the Resource Governor you will be able to affect CPU distribution between these competing workloads. The effects of the resource management are observed using performance counters specific to Resource Governor.

Step 1: Initial Demo Setup

On a newly installed server (i.e. no prior Resource Governor configuration) you may need to run these setup steps. I normally doing my demo on a dual core laptop and for the sake of simplicity I'm using a single CPU for SQL Server. To do so, I adjust CPU affinity mask as follows:



Using 1 CPU for SQL Server on a dual proc machine has an interesting side-effect: we normalize "CPU usage %" counter to number of CPUs on the box and thus, the values will hover around 50% as maximum and not 100% as you might expect. I will illustrate this below.

Of course you can use both CPUs but this complicates the demo. This is a subject for whole another post - what happens when you have multiple CPUs.

In addition to that for demo purposes I will set min/max server memory to a fixed value, since it will improve predictability of the demo on the laptop.

Step 2: Workload groups and Resource Pools

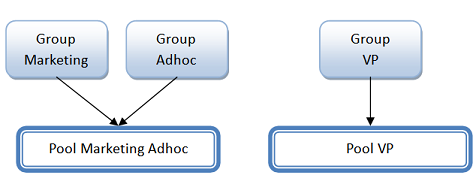

Now we will be setting up the following hierarchy of workload groups and resource pools:

Each corresponding workload group contains queries of the corresponding class or department (i.e. Marketing, Adhoc, and VP). Note that, Marketing and Adhoc queries share the same resource pool, while workload group VP has its own similarly named pool. The reason of such separation will become clear as we see how we adjust Resource Governor controls.

You will start building the above configuration in a bottom up manner (i.e. starting from pools and going up)

To do so, we execute the following T-SQL:

Step 3: Classification

Now, what you have just done is created hierarchy of the groups and pools, however, how does the server know about which query goes where? This is where classification comes in. The above picture becomes:

There is a couple of things:

1. To do the classification you will need to create a user-defined function that will be executed for every new connection and it will place these new connections in the corresponding workload groups.
2. How will we separate different connections? For demo purposes we will use 3 separate login names which we will check and use inside of the function

To implement the above 2 steps we will run the following:

Step 4: Are we there yet?

After all this work, can we start workloads and see what happens? The answer, as you have guessed by the question is - no. What's left? Again, a couple of steps:

1. We need to tell Resource Governor to use the function that we just created
2. Make all the changes effective

First step is done by

For the second step, let's compare output of catalog views with in-memory information (note difference in names of catalog views and dynamic management views (DMVs) which are prefixed with dm_:

Now transfer changes from metadata to memory by running the following statement. Also, do not confuse it with already existing RECONFIGURE command:

And rerun the above query on metadata and DMVs and you should see that new groups, pools and classifier function ID are present in corresponding DMVs.

Step 5: Running the workloads

The easiest way to simulate a CPU intensive workload is to run the following in a loop:

Also, instead of running this query from the Management Studio, consider saving it in a file and running from a command prompt by using a script similar to the below. Note that we are using 3 different user names to connect to the server.

To observe the effects of the load, add the following performance counters in the perfmon:

1. We will monitor CPU usage per group in the 1^st instance of perfmon; add "SQLServer:Workload Group Stats object", "CPU usage %" counter for "GroupMarketing", "GroupAdhoc" and "GroupVP" instances

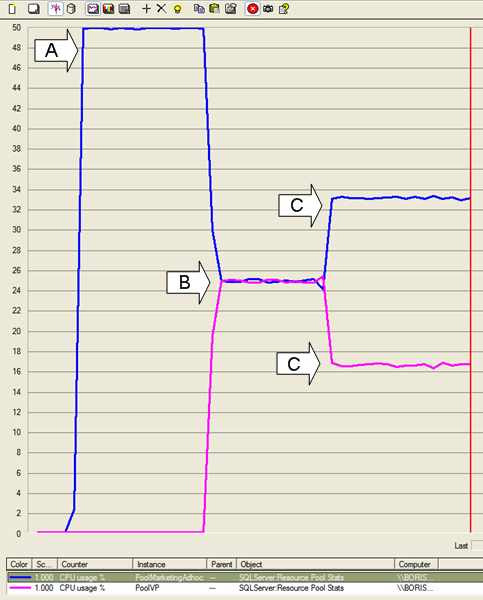

2. We will monitor CPU usage per pool 2^nd instance of perfmon, add "SQLServer:Resource Pool Stats object", "CPU usage %" counter for "PoolMarketingAdhoc" and "GroupVP" instances

Before you start the next workload, observe the counters for pools and groups for a number of seconds, you should see approximately the following:

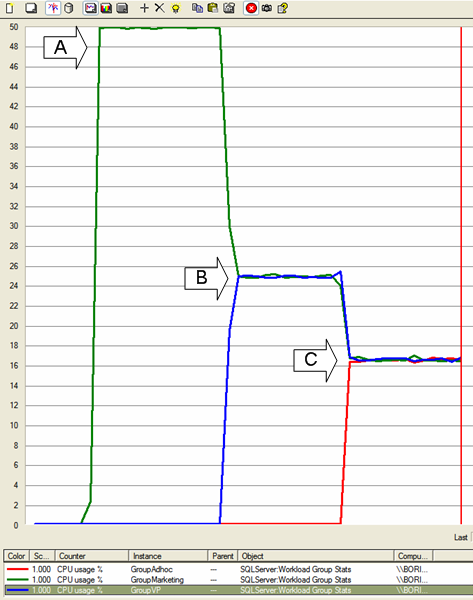

For groups (click on the image to open in a new window):

For pools:

Few things to note:

1. Remember I set affinity mask to 1? This is why the maximum on the figures is only 50% (it is for a single CPU while usage is normalized to all CPUs on the machine, 2 in my case)
2. At point A, I started Marketing workload, CPU usage went to the maximum on the CPU for a single workload, 50% in this case
3. At point B, I started VP workload, which, as you remember, belongs to a separate resource pool and it made Marketing group share half of the CPU with VP group. The same is true for the pools (because we have 1 to 1 match of active requests in groups to pools at this point)
4. At point C, I started Adhoc workload, which has its own group but shares the pool with Marketing workload. What happened here on the groups is that all 3 of them are now sharing the CPU getting approximately 1/3 of it or roughly 17%. On the pool side, however, we can see that MarketingAdhoc pool which shows aggregate resource usage by all groups inside of it, has 2/3 or the CPU while PoolVP has only 1/3. This behavior is exactly what you get on SQL Server 2005. Resources are distributed as they are being requested and whoever needs more CPU simply gets it. This was one of the goals: to make behavior as close as possible to SQL Server 2005 when you do not use the Resource Governor or adjust any parameters of it. Note, however, by creating the groups and pools you are already slightly altering the behavior of SQL Server 2008, but more on this in the next few posts.

Step 6: Management Actions

Now we came to the point where we want to apply action to change the above picture. Specifically, we want our VP workload to proceed faster and thus, limit CPU usage by Marketing and Adhoc workloads to 50% of the CPU.

To do this, we alter the PoolMarketingAdhoc using the following syntax (remember, we created the pool using all default parameters):

Remember to make changes effective:

Now, let's look at the counters:

For groups:

For pools:

What you will see is what happened at point D: Pool usage by PoolMarketingAdhoc went back to half of the CPU while PoolVP took the remaining part of it. Note that, on group side GroupVP usage went up to use half of the CPU (it has a single workload) while groups Marketing and Adhoc divide another half equally (12.5% each).

Further step is to alter IMPORTANCE parameters of the Marketing and Adhoc groups. IMPORTANCE affects CPU distribution when two groups share the same pool. Value of importance has a numeric meaning for CPU bandwidth distribution. Ratio of Low:Medium:High IMPORTANCE is equal to 1:3:9.

To illustrate this, let's run the following:

When changes become effective corresponds to the point E on the above graphs. Note that distribution between pools does not change, amount of CPU available to GroupVP also does not change (there are no other groups in this pool), but GroupMarketing takes about 10 times of the bandwidth available to GroupAdhoc (remember the ratio of Low:High = 1:9, but together they stay within PoolMarketingAdhoc limits.



That's enough for the first post. In the upcoming post I will try to go over the cases when the demo does not seem to work or shows "unusual" behavior and possible explanations of it.
